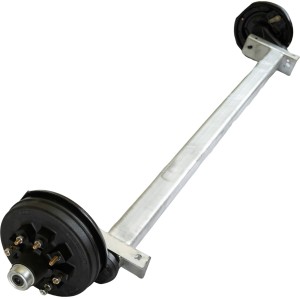

Torsion Axle With Brake Kit For Trailer 5200 lbs

Torsion Axle With Brake Kit For Trailer 5200 lbs

Model: custom

Item specifics

Type: Torsion Axle

Capacity: 5200lbs

Custom MOQ: 500pcs

Brake: Electric brake

Surface Finish: powder coating or galvanized

Review

Description

A short introduction about our company as a 5200lbs torsion axle manufacturer

As a professional trailer axle manufacturer we make 5200lbs torsion axles and other weight capacity of torsion axles as well. We are specializes in the design, engineering, and production of high-quality torsion axles capable of supporting up to 5,200 pounds of load capacity. We supply more than 15,000 axles to north American, Europe and Australia Market.

Specification

Axle Type	rubber torsion axle
Weight Capacity	5200lbs
Hub face to Hub face Distance	customized (based on customer's requirement)
Mounting Bracket Distance	customized (based on customer's requirement)
Brake	electric brake (no brake or mechanical or hydraulic brake for option)
Bolt Pattern	6 bolts on 5.5''
Angle	45° up - 45° down (can change based on different requirement)
Surface Treatment	black painted or hot dip galvanizing

Products And Production Display

Key Features

●High Weight Capacity: With a maximum load-bearing capacity of 5,200 pounds (2,359 kg), this torsion axle is engineered to handle the heaviest loads, ensuring stability and safety during transit.

●Beam Size and Drum Bolt Pattern: The axle features a robust beam size of 80 x 80 mm, paired with a drum bolt pattern of 6 bolts spaced at 5.5 inches, providing a secure and reliable mounting system for the wheel assembly.

●Electric Brake System: Equipped with an electric brake system, this axle offers superior braking performance, enhancing control and safety when towing. The electric brake is easy to install and integrates seamlessly with most modern towing systems.

●Bearing Specifications: The axle is fitted with high-quality bearings to ensure smooth operation and longevity. It includes an inner bearing model 15123 and an outer bearing model 25580, both designed to withstand the rigors of continuous use.

●Surface Finish Options: Available in both powder coating painted and galvanized finishes, the torsion axle provides excellent corrosion resistance and durability, suitable for both indoor and outdoor use.

●Custom Length Availability: We offer custom lengths of torsion axles to fit specific trailer requirements. The minimum order quantity (MOQ) for custom lengths is 200 pieces.

Additional Features

●Customer Needs and Requirements: We produce torsion axles based on customer needs and requirements, ensuring that each product is tailored to meet your specific specifications.

●Customer Drawings: We can manufacture torsion axles based on customer-provided drawings, allowing for precise customization and alignment with your design preferences.

●Sample Production: We can produce torsion axles based on customer samples, ensuring that the final product matches your expectations.

●Free Sample: Upon request, we provide free samples to help you evaluate the quality and suitability of our products before placing a large order.

●1 Year Warranty: Each torsion axle comes with a 1-year warranty, providing peace of mind and ensuring that you receive a reliable and durable product.

Additional Options

●Brake Type: While the standard configuration comes with an electric brake, we also offer a 5200lbs torsion axle with idle hub, with hydraulic disc brake, hydraulic drum brake, mechanical disc brake or mechanical drum brake option for customers who prefer alternative braking systems. This flexibility allows users to choose the best braking solution based on their specific needs and preferences.

Applications

This torsion axle with brake kit is suitable for a variety of trailers, including but not limited to:

●Utility trailers

●Boat trailers

●RVs and campers

●Equipment and machinery transport trailers

Quality Assurance

Each torsion axle is rigorously tested to ensure it meets our high standards of quality and performance. Our manufacturing process adheres to strict industry regulations, ensuring that every component is reliable and durable.

We provide one year warranty for all the axles.

Customer Support

We provide comprehensive customer support, including technical assistance and warranty services, to ensure a seamless experience from purchase to installation and beyond.

The Torsion Axle with Brake Kit for Trailer is a premium product designed to deliver exceptional performance and reliability. Whether you're towing heavy equipment, a boat, or a recreational vehicle, this axle system is the perfect choice for ensuring a safe and smooth journey. Contact us today to learn more about our custom options and to place your order.
